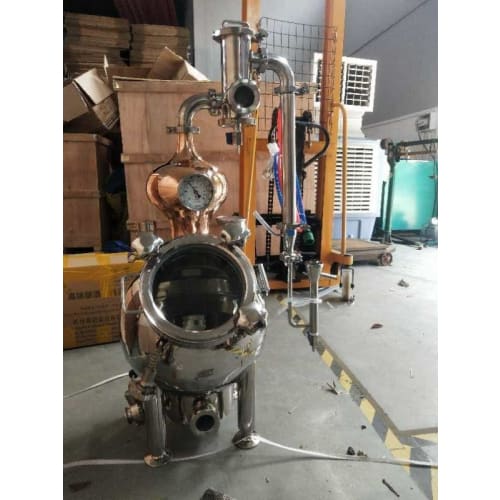

42L Round Still (36L Usable Volume)

Product description

The 42lt Round Still has a total volume of 42 liters when filled from the top, and 36 liters when filled through the Man Hole.

A standard 4 inch ferrule fitting connects the boiler to the vapor chamber, and can serve as a mounting point for a 4 inch fractionating column as well.

The 1.5 inch fitting on top of the Copper Vapour chamber can fit either a Stainless Steel Reflux Extension, or a Glass Reflux Bubble Plate Extension.

Specifications:

• 2 kW Element
• Glass Element Monitoring Port
• Large Butterfly Drain Valve
• Removable Perforated False Bottom Plate
• Boiler Temperature Thermometer
• Standard Ginning head
• Pressure Release Valve
• Large Glass Manhole
• Copper Vapour Chamber
• Vapour Temperature Thermometer
• 2 x 90 degree Bends
• 2 x 200 mm Extensions (or 200 mm Extension and 45 degree bend)
• 1.5 inch to 2.0 inch Reducer
• 2 inch Gatling Gun Condenser
• Surge Arrestor
• Parrot with Drain Valve
• Ginning Head with Drain Valve
• Control Box with Temperature Control and Timer Control
• Spare Element
• 0 - 100 Alcoholmeter

You might also like:

• Stainless Steel Reflux Extension
• Glass Bubble Plate Reflux Extension
• 4 inch Bubble Plate T-Sections
• 4 inch Column (4 plate or 6 plate)
• Vacuum Pump and Vacuum Flask
• Essential Oil Extension
• Inline Ginning Section

NOTE: This still does not come with hose or connectors to enable customers to fit their own system. Optional Hose Kit is available however.
